Welded Metal Bellows Used In Vacuum Valve And Semiconductor

Brand GS

Product origin China

Supply capacity 10000sets

1)welded pipe for semiconductor equipment:

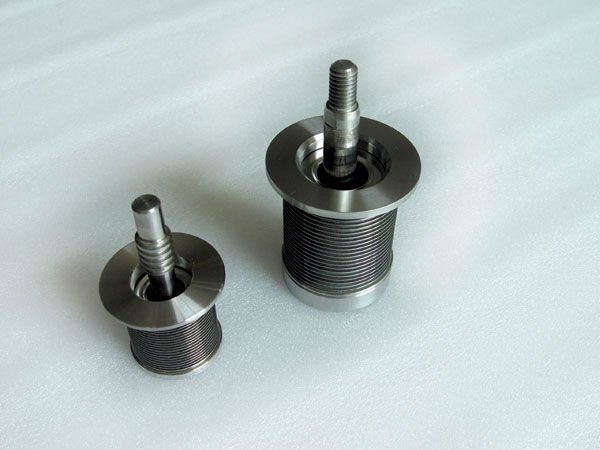

2)welded metal bellow for semiconductor valve :
3)welded vacuum pipe for soft connecting of high vacuum equipmen:
4)welded metal bellow for vacuum semiconductor valve:
5)welded metal bellows for vacuum equipments
6)welded metal bellows for sensor

Welded Metal Bellows Used In Vacuum Valve And Semiconductor

welded metal bellowwelded metal bellows for vacuum equipmentswelded metal bellows for valveswelded metal bellow


welded vacuum bellow Features:

1) Varieties of bellows shape design: typical double "s" bellows shape design is
adopted by DB and DM and stress distribution design in the inner diameter on
the welding bead is adopted by DC and DH

2) More material can be selected: Meet the different needs of working conditions
3) More bellows sheet thickness can be selected: more bellows sheet thickness at the single or double layers can be supplied, for example 0.12mm, 0.15mm,
0.18mm

4) Abroad application ranges: used in joint welded metal bellows and bellows mechanical seals

Operating conditions:

1) Temperature: -200 ~ 450°C, or according to material performance

2) Pressure: vacuum 7MPa

3) Axial compressibility: >40%

1)welded pipe for semiconductor equipment:

outer diameter:218/169/145mm

inner diameter:198/149/125mm

wall thickness:0.15mm

wave pitch:1.8mm

total wave number:50-54

2)semiconductor valve features:

outer diameter:44.5/34.2mm

inner diameter:19/13.6mm

wall thickness:0.15mm

wave pitch:1.8mm

total wave number:30/17

compression ratio:70%

extension ratio:20%

material:SUS 316L AM350

vacuum leak ratio:1*10-10Pa·L/S

service life:1000000

compression ratio:70%

extension ratio:20%

material:SUS 316L

vacuum leak ratio:1*10-10Pa·L/S

service life:1000000 :

3)welded vacuum pipe for soft connecting of high vacuum equipmen:

outer diameter:51mm

inner diameter:31.8mm

wall thickness:0.15mm

wave pitch:1.8mm

total wave number:60

compression ratio:70%

extension ratio:20%

material:SUS 316L

vacuum leak ratio:1*10-10Pa·L/S

service life:1000000

4)vacuum semiconductor valve:

outer diameter:44.5mm

inner diameter:19mm

wall thickness:0.15mm

wave pitch:1.5mm

total wave number:30

compression ratio:80%

extension ratio:20%

material:SUS 316L AM350

vacuum leak ratio:1*10-10Pa·L/S

service life:1000000

Liaoning Grand trade Co., Ltd is a high-tech and exporting enterprise integrating product research, design, manufacturing, sales and service.

Our main productsMechanical seal(spring mechanical sea, welded metal bellow seal,water pump seal,elastomer bellow seal,high speed seal,cartridge seal),Seal supply system ,Vacuum welded metal bellows,Magnetic oil seal,seal parts of mechanical seals(silicon carbide,tungsten carbide,carbon graphite,elastomer o ring),bronze bearing and seal spare parts etc. The products are applied in many fields such as petroleum, chemical industry, electric power manufacturing, refrigeration, ship building, aviation, aerospace and so on.We have established long-time and stable cooperation relationship with many European ,American and Asian customers.

Packing:Standard & Strong Packing by air / sea
Poly bag + Box + Carton + Pallet
Can be with our brand packing, or OEM with your brand and design
Delivery: By Sea, By Air, By Train, By Truck, By Express company as your needs
Terms:EXW, FOB, CFR, CIF, DDU , if you need Door to Door please contact us
